PIUSI CUBE 56-70-90

CUBE

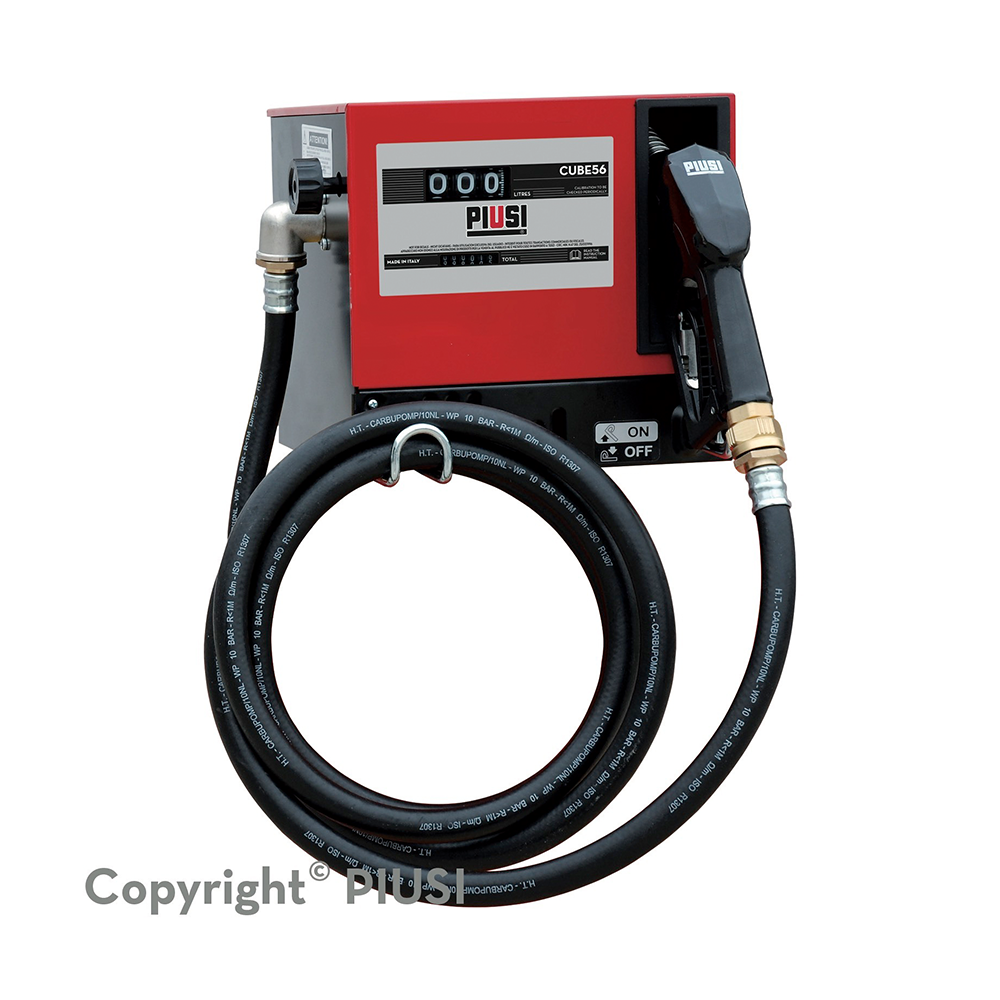

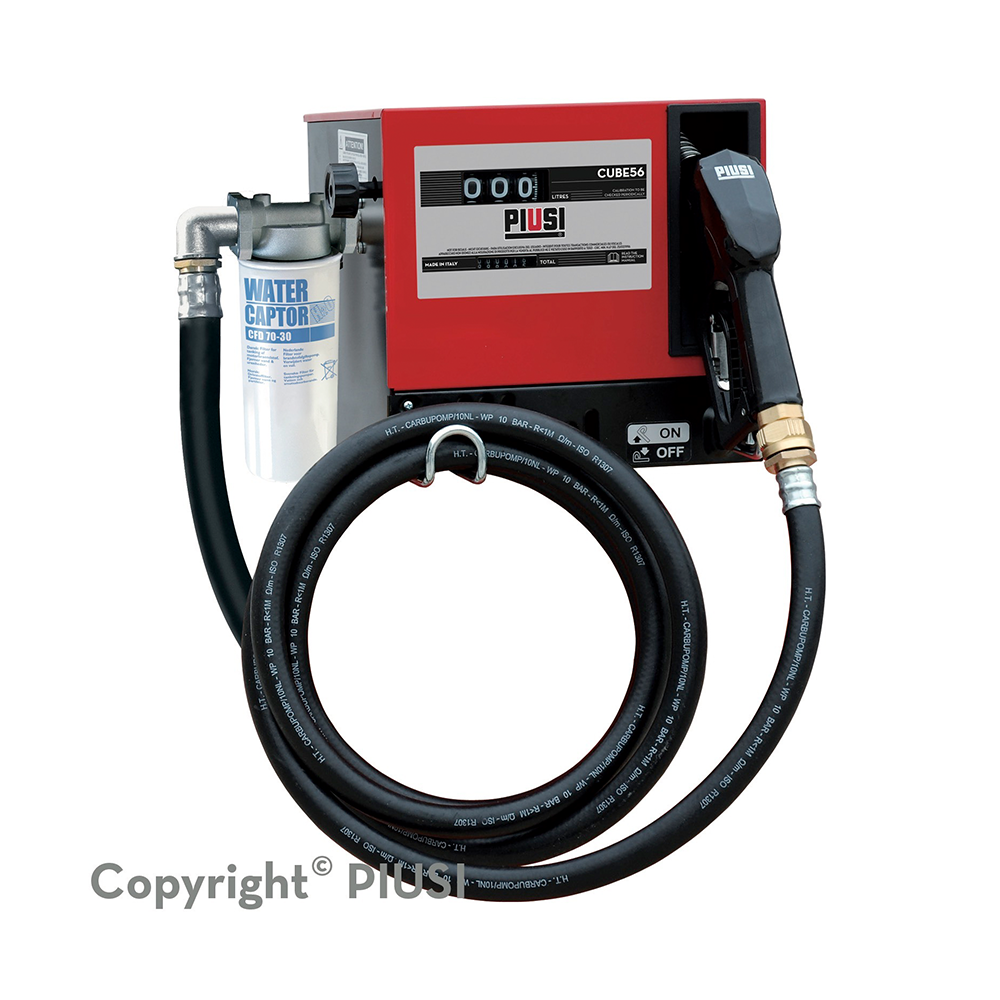

CUBE 56-70-90 is a diesel dispenser for non-commercial use that allows you to manage the transfer, dispensing and monitoring of fuel.

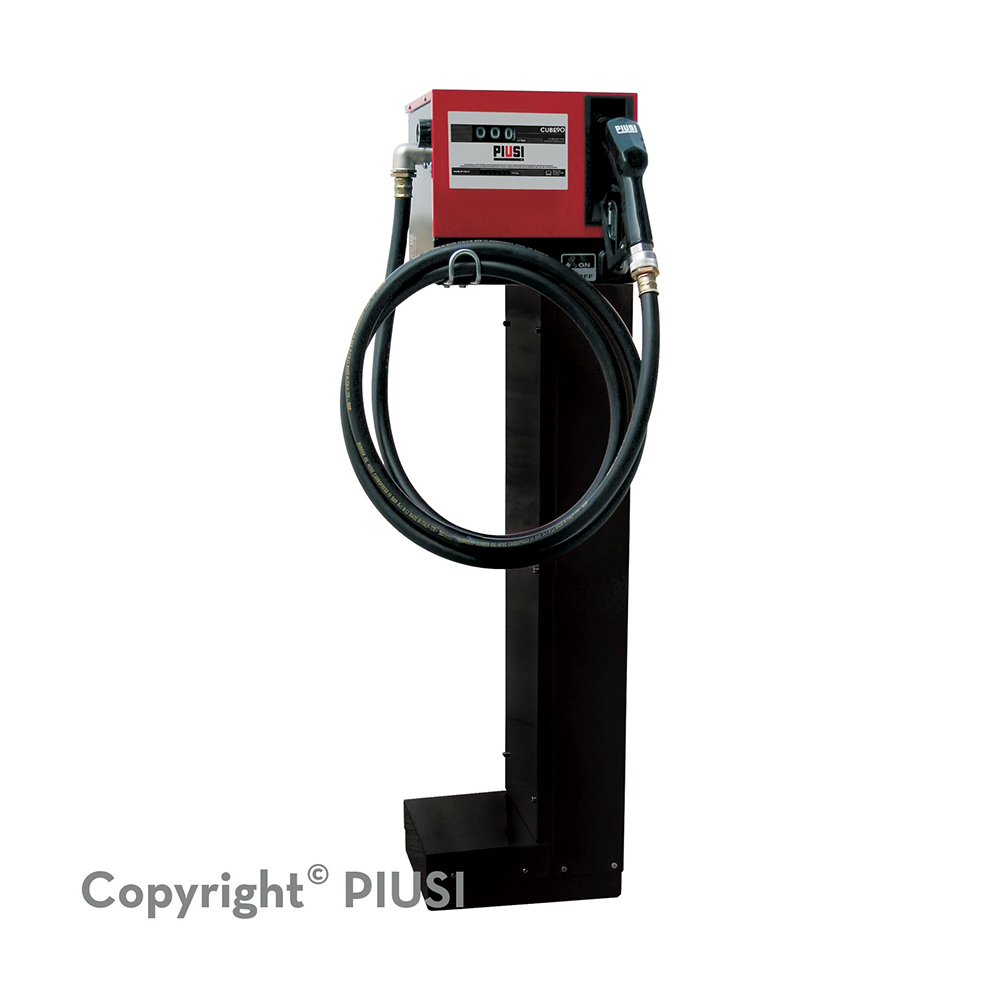

The characteristic of this diesel dispenser is that it can be adapted to different applications. In fact, it is possible to apply CUBE 56-70-90 on tanks, on the wall, on cisterns, on drums or on its special pedestal. CUBE 56-70-90 is suitable for different sectors: from the agricultural sector, the diesel transfer pump station can also be used in the logistics, automotive, construction and industrial sectors.

PRACTICALITY AND SIMPLICITY

The CUBE 56-70-90 fuel dispenser is equipped with a self-priming vane pump with bypass that ensures high performance. CUBE 56-70-90 as a diesel dispenser is installed on anti-vibration mounts for better comfort and practicality in use, while the mechanical seal and the thermal protection against overheating of the induction motor make the product reliable and safe.

The nozzle supplied is automatic with a swivel connection and the nozzle holder has a pump start/stop lever. The installation of the mesh filter on the suction side ensures a long life of the pump, because no foreign matter ends up in the rotor and causes a blockage and consequent breakage.

CONSUMPTION MONITORING

The CUBE 56-70-90 diesel dispenser also consists of a volumetric flow meter with oscillating disc for the management of the dispensing operations. The simple view allows you to monitor the quantity dispensed.
