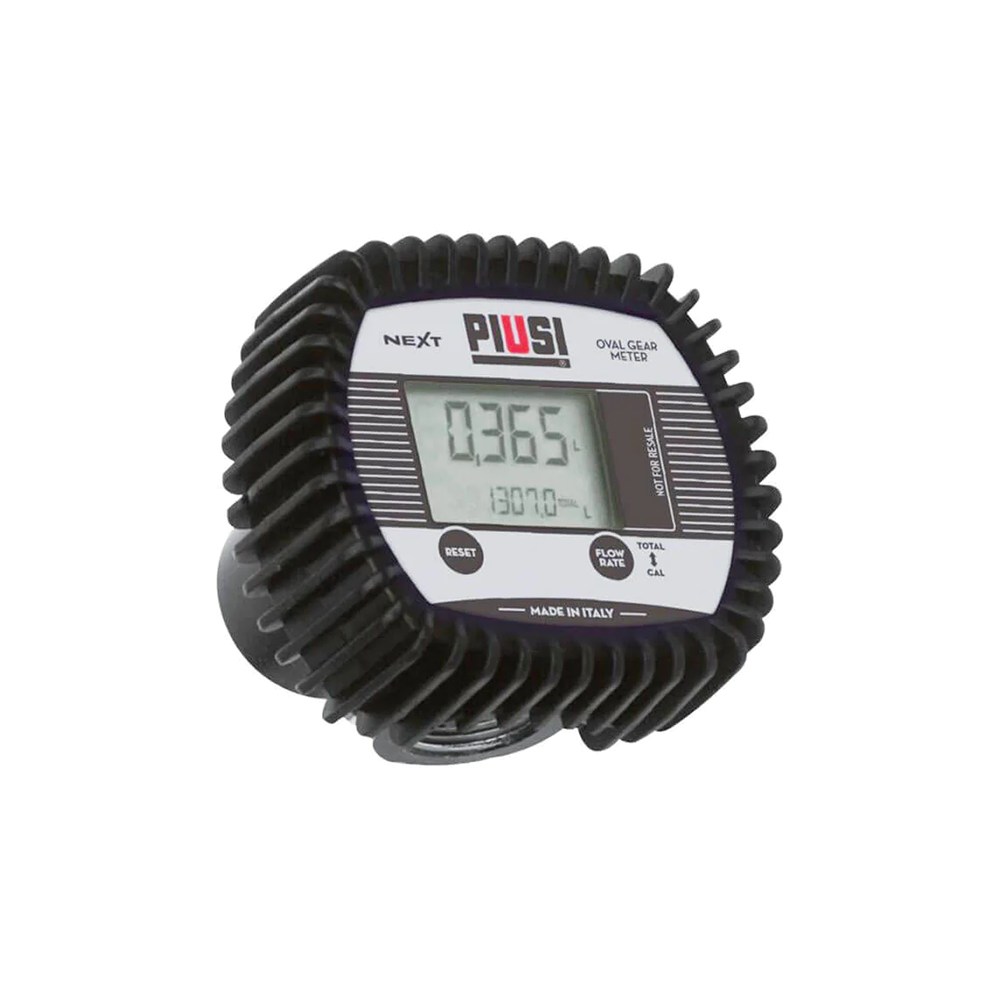

PIUSI NEXT 2 METER

PIUSI NEXT 2 METER

R 5,500.00 ZAR
R 5,500.00 ZAR
Sale Sold out
Shipping calculated at checkout.

NEXT/2

NEXT/2 is an oval gear electronic flow meters in acetal resin for controlling non-commercial dispensing of low, medium and high viscosity fluids including Lubricating oils and other special fluids compatible with construction materials.

MAIN FEATURES

  • Body with aluminum measuring chamber.
  • 5-digit partial total (h=11.5 mm) with floating point from 0.001 to 999.99
  • 8-digit non-resettable total (h=5 mm) from 1 to 99999999.
  • Resettable total.
  • Repeatability 0.2%
  • Loss of pressure <0.5 bar at maximum flow rate
  • Flow rate up to 60 l/min
  • Accuracy +/- 0.5%
  • Maximum operating pressure 70 bar
  • Bursting pressure: 140 bar

TECHNICAL DATA

PRODUCT CODE DESCRIPTION PARTS MANUALS
F00486150 NEXT 2 METER ¾" BSP
